BLACKMAGIC VIDEOHUB 120X120 12G

Ürün Tanımı

Blackmagic Videohub 120x120 12G is an advanced zero latency video router that supports any combination of SD,

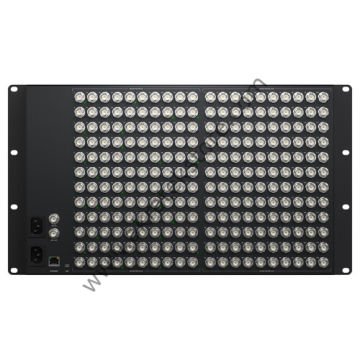

HD and Ultra HD on the router at the same time. The 12G-SDI inputs feature LEDs on each BNC that indicate an
SDI signal, plus there are 12G-SDI outputs, redundant power and reference connections in a four rack unit design.

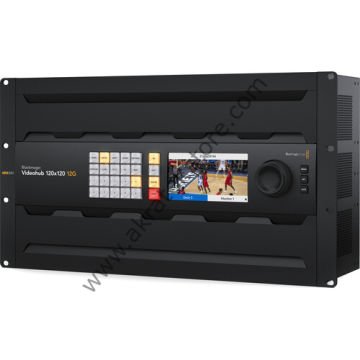

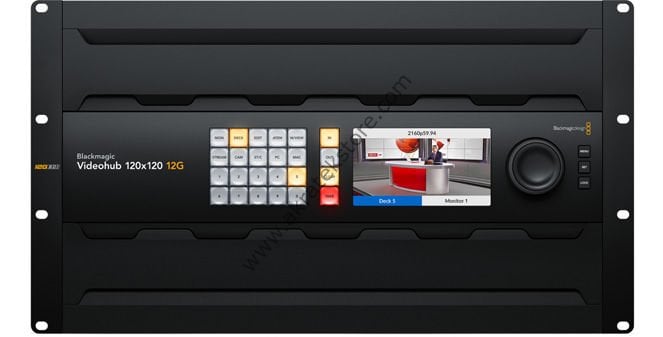

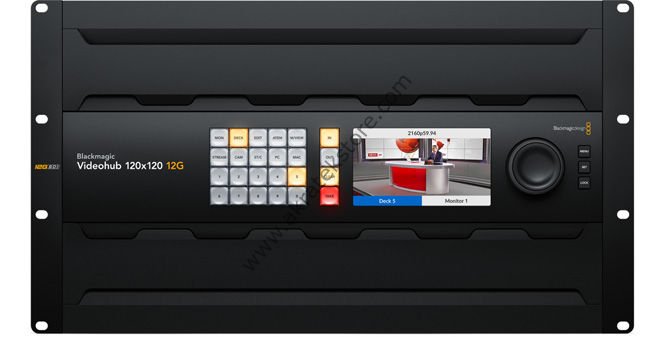

The large HD LCD lets you see video before routing and clearly displays routing labels and video standards.
Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch.
It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.

Bağlantılar

SDI Video Girişi: 120

SDI Video Çıkışı: 120

SDI Hızları
DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.

SDI Reclocking
On all SDI outputs.

Referans Girişleri
Tri-Sync or Black Burst.

Referans Çıkışları
Reference terminating loop output.

Ethernet
Supports 10/100/1000 BASE‑T.

Bilgisayar Arabirimi
USB-C

Formatlar

SD Video Standartları
525i59.94 NTSC, 625i50 PAL.

HD Video Standartları
720p50, 720p59.94, 720p60.
1080i50, 1080i59.94, 1080i60.
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60.
1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.

2K Video Standartları
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI.
2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI.

Ultra HD Video Formatları
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60.

4K Video Standartları
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI.

SDI Uyumluluğu
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M seviye A ve B
SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 ve ITU‑R BT.601

SDI Ses Örnekleme
Television standard sample rate of 48kHz and 24-bit.

SDI Video Örnekleme
YUV 4:2:2 and RGB 4:4:4

SDI Renk Hassasiyeti
10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.

SDI Renk Düzeni
REC 601, REC 709, REC 2020.

SDI Otomatik Algılama
Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so
that each input can be running a different television standard.

SDI Metaveri Desteği
Video payload identification ancillary data as per SMPTE 352M.

Kontrol

Dahili Kontrol Paneli
24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display.

Harici Kontrol Paneli
Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro
hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.

Kontrol Panel Bağlantısı
Ethernet

Yazılım

Yazılım Kontrolü

Router control included free for Windows™ and Mac™.

Dahili Yazılım Güncellemesi

Via included updater application.

İşletim Sistemleri

Mac 13.0 Ventura,
Mac 14.0 Sonoma ya da üzeri.
Windows 10, 64-bit.
Windows 11.

Ekran

Ekranlar
Built in 5 inch LCD for video and menu settings.

Güç Bilgileri

Güç Kaynağı
2 x Internal 100 - 240V AC 50/60Hz.
IEC power cables required.

Güç Kesintisine Karşı Koruma
Crosspoint connections preserved and restored instantly at power on.

Güç Kullanımı
140 W max.

Fiziksel Kurulum
6 rack units height.

Çevresel Koşullar

Çalışma Ortamı Sıcaklığı
0° to 40° C (32° to 104° F)

Saklama Ortamı Sıcaklığı
-20° to 60° C (-4° to 140° F)

Bağıl Nem
0% to 90% non-condensing

Kutu İçeriği

Blackmagic Videohub 120x120 12G

Yazılım indirmek için QR Kodlu yeni kullanıcı cüzdanı
