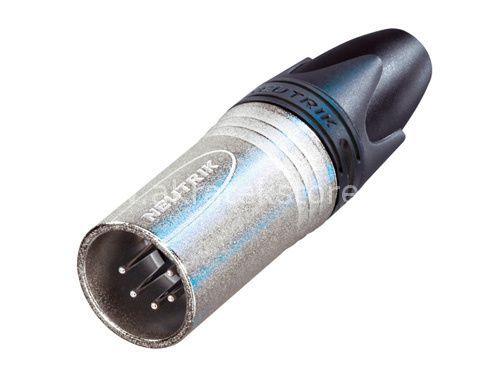

Neutrik NC5MXX Kablo Tipi Konnektör

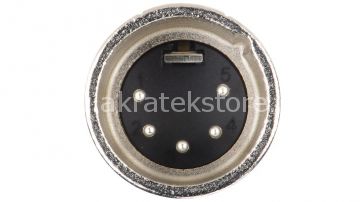

Kablo Tipi Metal Mandallı Erkek 5 Pin XLR konnektör
www.akratekstore.com

5 pole male cable connector with Nickel housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features :
Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well proteced against any damage
Branded with unique hologram - guarantees genuine and authentic Neutrik product
Specs :
PLUG, XLR, 5POLE
Connector Type: XLR
Series: XX
No. of Contacts: 5
Gender: Plug
Connector Colour: Natural
Contact Termination: Solder
Contact Plating: Silver
Connector Mounting: Cable
Connector Body Material: Metal
SVHC: No SVHC (19-Dec-2012)
Colour: Nickel
Contact Resistance: 3mohm
Current Rating: 7.5A
Flammability Rating: UL94HB
Insertion Force: 20N
Insulation Resistance: 2Gohm
Mounting Type: Cable
No. of Mating Cycles: 1000
Operating Temperature Max: 80°C
Operating Temperature Min: -30°C
Termination Method: Solder
Voltage Rating V AC: 150V
XLR Capacitance: 7pF
