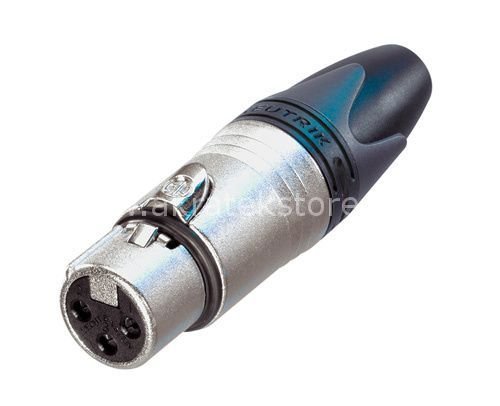

Neutrik NC3FXX Kablo Tipi Konnektör
Kablo Tipi 3 Pinli Dişi XLR Konnektör
www.akratekstore.com
Teknik Özellikler
- Connector Type XLR
- Gender female
- Capacitance between contacts? 4 pF
- Contact resistance? 3 m?
- Dielectric strength1,5 kVdc
- Insulation resistance> 2 G? (initial)
- Insulation resistance> 1 G? (after damp heat test)
- Rated current per contact16 A
- Rated voltage 50 V
- Cable O.D.3.5 - 8.0 mm
- Insertion force 20 N
- Withdrawal force 20 N
- Lifetime> 1000 mating cycles
- Wire sizemax. 2.5 mm²
- Wire sizemax. 14 AWG
- WiringSolder contacts
- Locking deviceLatch lock
- BootPolyuretan
- BushingPolyamide (PA 6 15%25 GR)
- Contact plating2 µm Ag over 2 µm Ni
- ContactsBronze (CuSn8)
- InsertPolyamide (PA 6.6 30 %25 GR)
- Locking elementSt3K32 (latch) / Ck 67 (spring)
- ShellZinc diecast (ZnAl4Cu1)
- Shell platingNickel
- Strain reliefPolyacetal (POM)
- ApprovalsUL
- FlammabilityUL 94 HB
- Standard complianceIEC 61076-2-103
- Protection classIP 40
- SolderabilityComplies with IEC 68-2-20
- Temperature range-30 °C to %2B80 °C
