FORTİNGE PRO173S-QUAD
Kategori
Marka
Stok Kodu
PRO173SQ
Garanti Süresi
24 Ay
İndirimli Fiyat
2.000,00 USD + KDV
14.862,56 TL den başlayan taksitlerle!!
90.995,28 TL

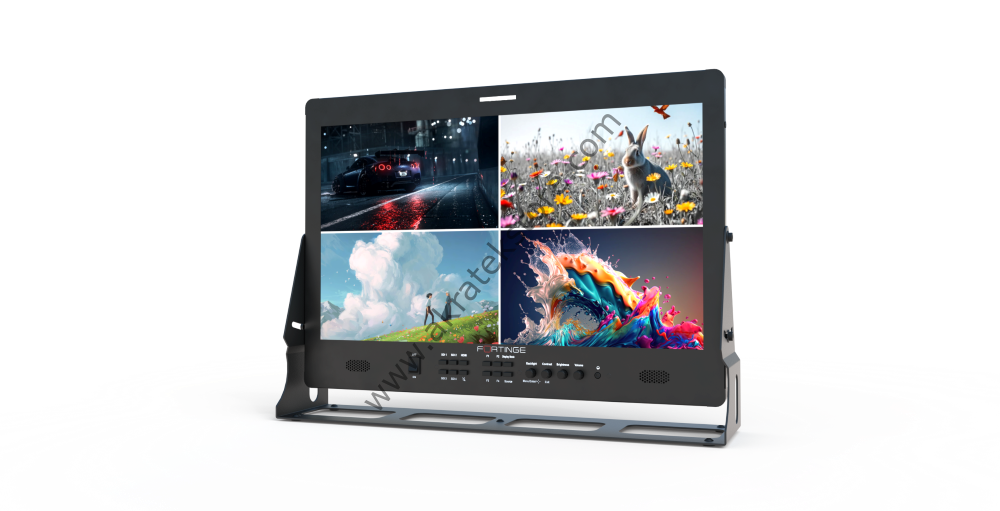

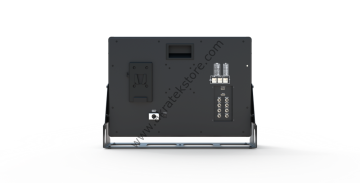

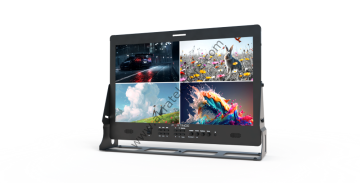

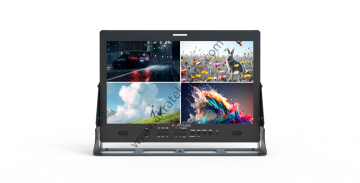

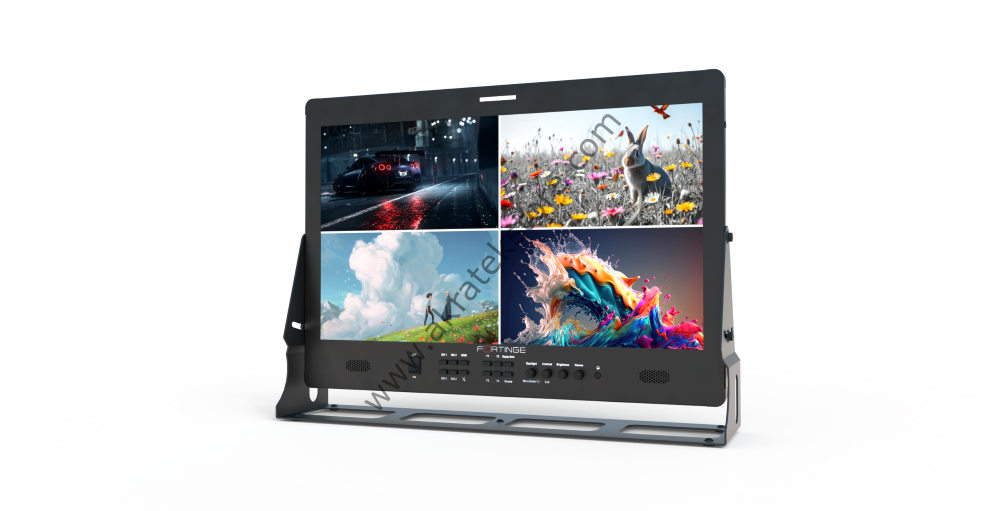

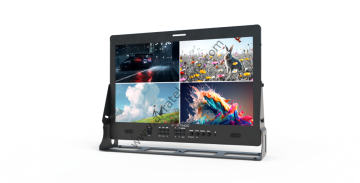

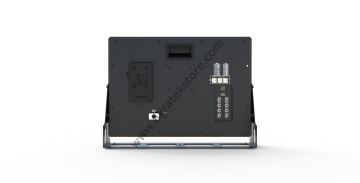

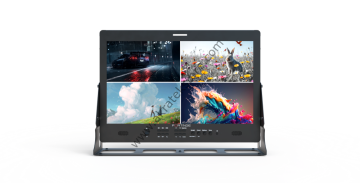

FORTİNGE PRO173S-QUAD
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.
* Multiple interfaces, meet different needs (4*3G-SDI inputs and outputs, 1*HDMI input, RS485, GPI)
* Stereo Earphone output
* VESA standard mounting points support for bracket or hang wall installation.
GENERAL
* Input Voltage DC 12V
*Power Consumption ≤22W
*Working Temperature 0°C~50°C
*Storage Temperature -20°C~60°C
*Unit Size 425L×296H×23D (mm) (W/O bracket)
*Unit Weight 2.84kg
*Outer Carton Qty 2
*Outer Carton Size 535*350*425 (mm)
*Gross Weight 10.735kg
PANEL ÖZELLİKLERİ ;
Screen Size 17.3"
Color Depth 16.7M
Resolution 1920×1080 pixels
Pixel Pitch 0.1989(H)×0.1989(V) mm
Aspect Ratio 16:9
Brightness 300cd/m²
Contrast Ratio 700:1
Backlight LED
INPUT
4 X 3G-SDI 3G-SDI (support 2K)
1 X HDMI HDMI (support 1080P)
1 X RS485 RS485
1 X GPI GPI
1 X USB USB (upgrade and LUT import)
OUTPUT
4 X 3G-SDI 3G-SDI (support 2K)
1 X RS485 RS485
AUDİO
Audio Stereo Headphone, Speaker
SDI SUPPORT FORMAT
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
2048x1080i (60/59.94/50)
2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI SUPPORT FORMAT
480i/576i/480p/576p
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
ADVANCED FEATURES
* Built-in Multi camera Delog LUTs
* User 3DLUTs upload via USB (up to 36)
* Support GPI control
* Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol
* Support TALLY
* Support 16-ch embedded audio meters display
* Histogram
* HDR
* Focus Assist (Yellow, Red, Green, Blue, White five colors optional highlight over parts of the image in focus)
* False Colors
* Zebra (70IRE, 80IRE, 90IRE)
* Timecode Display
* Picture in Picture (Adjustable Horizontal or Vertical Wipe Position)
* Under Scan, Over Scan
* Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag)
* Pixel to Pixel
* Center Marker
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user)
* Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
* All Waves
* Parade (RGB Parade, Y, YUV Parade)
* Image Freeze
* Selectable Color Temperature Presets
