- Supports 3G-Ready HD-SDI Signals
- DVJB-W 75 Ohm Dual Video Jacks
- Rotary Switch Technology
- Normal Through Signal Routing
- Uses VPC Series Patch Cords
|
Type
|

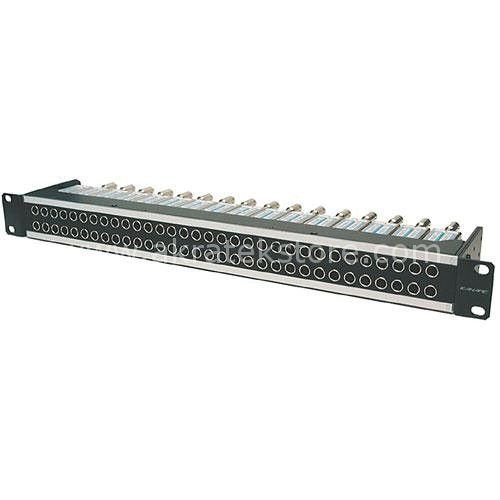

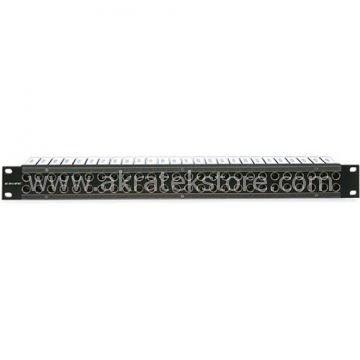

Digital Video Patchbay
|
|
Configuration
|
2x24
|
|
Signal
|
HD-SDI (SMPTE 424M Standard)
|
|
Impedance
|
75 Ohm
|
|
Return Loss
|
26dB or greater @ 750MHz
|
|
|
20dB or greater @ 2.4GHz
|
|
|
10dB or greater @ 3.0GHz
|
|
Isolation
|
35dB or greater @ 1.5GHz
|
|
|
20dB or greater @ 3.0GHz
|
|
Routing
|
Normal Through
|
|
|
Video Port (front): No Patch - BNC Port
(rear): Signal Loop
|
|
|
Video Port (front): Patch Upper - BNC
Port (rear): Lower Terminated
|
|
|
Video Port (front): Patch Lower - BNC
Port (rear): Upper Terminated
|
|
|
Video Port (front): Patch Both - BNC
Port (rear): Signal Thru
|
|
Connections
|
Front Patch (Female) uses VPC Type Patch
Cords
|
|
|
Rear BNC (Female) uses Industry Standard
Male BNC Connectors
|
|
Contact
|
Beryllium Copper, Gold-Plated Center
|
|
Construction
|
Lightweight Aluminum (video jacks)
|
|
Rack Units
|
1RU
|
|
Dimensions (WxHxD)
|
19 x 1.7 x 3.3" (482.6 x 44 x 85mm)
|
|
Weight
|
Not Specified By Manufacturer
|
|
Color
|
Black
|
|
Packaging Info
|
|
|
Package Weight
|
7.1 lb
|
|
Box Dimensions (LxWxH)
|
24.5 x 7.5 x 2.6"
|
