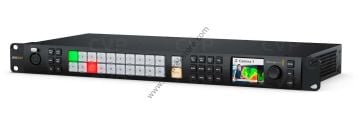

ATEM 2 M/E Constellation 4K

Ürün Tanımı

ATEM 2 M/E Constellation 4K is a powerful 2 M/E Ultra HD live production switcher. It features 20 standards converted
12G-SDI inputs, 12 12G-SDI aux outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multiviews, media players,
USB webcam output and a SuperSource for a total of 6 DVEs. You even get built in talkback and a professional
48 channel Fairlight audio mixer with EQ and dynamics!

Bağlantılar

Toplam Video Girişi: 20

Toplam Video Çıkışı: 12

SDI Hızları
1.5G, 3G, 6G, 12G

Toplam Ses Girişi
2 x balanced 1/4 inch Jack,
1 x 5 pin XLR Talkback.

Toplam Ses Çıkışı
1 x 5 pin XLR Talkback.

SDI Ses Girişleri
16 Ch embedded audio on all SDI inputs.

SDI Ses Çıkışları
16 Ch embedded audio on all SDI outputs.

Referans Girişi
Tri-Sync or Black Burst.

Video Girişi Yeniden Senkronizasyonu
On all 20 inputs.

Kare Hızı ve Format Dönüştürücüleri
On all 20 inputs.

SDI Aux Outputs
Any of the 12 SDI outputs.

SDI Preview Outputs
Any of the 12 SDI outputs.

SDI Program Outputs
Any of the 12 SDI outputs.

Down Converted SDI Program Output: 1

Webcam Çıkışı
1 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views: 2 x 12G-SDI

Kontrol Panel Bağlantısı
Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator: Yes

Talkback
RJ45 for 3rd party talkback systems.

Tally Output
Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet
Supports 10/100/1000 BASE-T.

Bilgisayar Arabirimi
1 x USB-C supports USB 2.0

Formatlar

HD Video Standartları

720p50, 720p59.94, 720p60.
1080i50, 1080i59.94, 1080i60.
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080p50, 1080p59.94, 1080p60.

Ultra HD Video Formatları

2160p23.98, 2160p24, 2160p25, 2160p29.97.
2160p30, 2160p50, 2160p59.94, 2160p60

SDI Uyumluluğu

SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B. SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10.

Video Örnekleme

4:2:2

Renk Hassasiyeti

10-bit.

Renk Alanı

REC 709, REC 2020

SDI Otomatik Algılama

Automatically detects between 1.5G‑SDI, level A or level B 3G‑SDI, 6G‑SDI and 12G‑SDI.

Ürün Özellikleri

Upstream Keyer Sayısı: 8

Downstream Keyer Sayısı: 2

Gelişmiş Chroma Keyer Sayısı: 8

SuperSource: 1

DVEs: 2

Linear/Luma Keyer Sayısı: 11

Transition Keyer (Stinger/DVE)

2 Stinger, 2 DVE.

Toplam Katman Sayısı: 15

Desen Üreteci Sayısı: 11

Renk Üreteci Sayısı: 2

Kontrol Panel

Front fascia emergency switching, software or optional hardware panel.

Routable Windows: 32

Windows Source Labels: Yes

Tally

Red for program and green for preview indication.

Talkback Support: Yes

Mix Minus Support: Yes

Çoklu Görüntü

Çoklu Görüntü

2 x multi view configurable to 16, 13, 10, 7 or 4 up views. Includes monitoring of Program, Preview, Inputs, Media Players,
Key Masks, Clean Feed with optional labels and audio meters.

Çoklu Görüntü Video Formatı
HD or Ultra HD

Medya Oynatıcı

Medya Oynatıcı Sayısı: 2

Kanallar

Fill and key for each media player.

Medya Havuzu Sabit Görüntü Kapasitesi: 40

Media Pool Clip Capacity

2 x up to 2160p60.

Media Player Clip Length in 720 HD: 3200 frames.

Media Player Clip Length in 1080 HD: 1600 frames.

Media Player Clip Length in 2160 UHD: 400 frames.

Medya Havuzu Sabit Görüntü Formatı

PNG, TGA, BMP, GIF, JPEG and TIFF.

Media Pool Video File Format

TGA Sequence.

Media Pool Audio File Format

WAV, MP3 and AIFF.

Ekran

Front panel

Built in 2.2 inch LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons,
6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.

İşlemci

Processing Delay

< 10 lines.

Ses Mikseri

48 Channel mixer

Selectable On/Off/Audio-Follow-Video.

Level and Peak metering.

Master gain control.

6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.

Down Conversion

1 x selectable HD down converted output

Yazılım

Cihazla Gelen Kontrol Paneli

ATEM Software Control included free for Mac 13.0 Ventura, Mac 14.0 Sonoma or later and Windows 10 or 11.

Yazılım Güncellemeleri

Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.

Yapılandırma

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.

İşletim Sistemleri

Mac 13.0 Ventura,
Mac 14.0 Sonoma ya da üzeri.
Windows 10 ve 11.

Güç Bilgileri

Güç Kaynağı: 1 x Internal 100 - 240 AC.

Güç Kullanımı: 140 W

Fiziksel Kurulum

Fiziksel Kurulum: 1 Rack Unit Size.

Çevresel Koşullar

Çalışma Ortamı Sıcaklığı

0° to 40° C (32° to 104° F)

Saklama Ortamı Sıcaklığı

-20° to 60° C (-4° to 140° F)

Bağıl Nem

0% to 90% non-condensing
